Products > Portable Coolers > HV 36-9

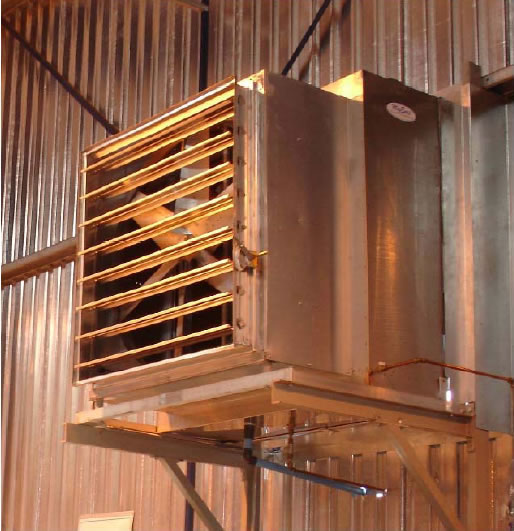

HV 36-9 Portable (Click for larger image.) HV 36-9 Suspension Mount (Click for larger image.)
Fan 36" Belt Drive
CFM 9,000
HP Fan 0.5, Pump frac.
Voltage 115/230 V Single Phase
Amps 8.2/4.1
Dimensions 54" H x 48" W x 40" D
Weight (dry) 300 lbs.

Standard Features
  • Temperature drops of up to 35 F°.
  • Stainless steel wet section with easy access to water system for long life and low maintenance.
  • High strength light weight aluminum chassis.
  • Four blade hgih performance fan.
  • High efficiency fans and blowers for maximum air delivery in a wide range of applications.
  • 12" rigid media for the lowest output temperature and highest cooling capacity available in any portable evaporative cooler.
  • Digital output air temperature thermometer that makes it easy to see the performance that sets us apart from the rest.
  • 115/230 volt power input with G.F.C.I. protection for safety.
  • Steel casters with polyurethane tread, brakes, and grease fittings rated at 600 lbs. each.
  • Mounting configuration: roll-around portable, suspension mount, or in a through-the-wall configuration.
  • Washable aluminum pre-filters keep debris out of media.
  • Six blade fan.
  • Three phase fan motor (suspension mount only)
  • Adjustable discharge dampers (suspension mount only)

Call for pricing and delivery options at (435) 743-5561 or email inquiry to
